DP1004
Rotation Sprinkler
Bar
1,0 bar 1,4 bar 1,75 bar
1,6 mm Blue
Flow (L/hr) - 114 127
50 Cm Height
Watering Radius Ø
- 12,6 Meters 12,6 Meters
100 Cm Height
Watering Radius Ø
- 12,6 Meters 12,8 Meters
Ø2.4 mm Golden
Flow (L/hr) 216 250 284
50 Cm Height
Watering Radius Ø
14,2 Meters 14,5 Meters 15,2 Meters
100 Cm Height
Watering Radius Ø
14,6 Meters 15,2 Meters 15,2 Meters
Ø3,2 mm Purple
Flow (L/hr) 379 443 495
50 Cm Height
Watering Radius Ø
15,5 Meters 15,5 Meters 15,8 Meters
100 Cm Height
Watering Radius Ø
15,8 Meters 16,0 Meters 16,2 Meters

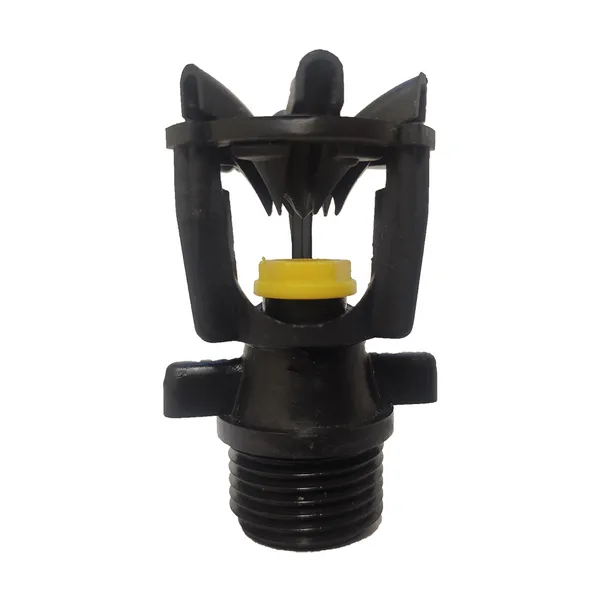

DP1005-HG

Rotation Atomizer Sprinkler (Ceiling)

Key Features:

  • Designed for use in greenhouses, overhead mounted and designed for rain drip
  • 1/2" male connection.
  • Low evaporation loss
  • Flow options with colored nozzle for different usage.
  • 95-490 Lt/h water consumption per hour
  • Operating pressure range from 1 to 1.75 bar
  • Lower sensitivity to clogging and higher resistance to wind.
  • Promotes germination thanks to small water particles.
  • Quality plastic material provides resistance to abrasion, chemicals, UV radiation and impact.
  • The rotation of the grooved deflector in combination with the yawing motion ensures the most uniform water application.
  • It distributes droplets over a wide coverage area at low pressures with lower application density.

Application:

  • Greenhouse applications
  • Thin-leaved plants.
  • Seed applications.
  • Suitable for frost protection
  • In order to prevent the formation of a layer above the soil.
  • Appropriate watering for germination.
