DP1004
Rotation Sprinkler
Bar
1,0 bar 1,4 bar 1,75 bar
1,6 mm Blue
Flow (L/hr) 95 114 127
50 Cm Height
Watering Radius Ø
8.0 Meters 8.5 Meters 8.8 Meters
100 Cm Height
Watering Radius Ø
9.4 Meters 9.8 Meters 10.1 Meters
Ø2.4 mm Golden
Flow (L/hr) 145 170 191
50 Cm Height
Watering Radius Ø
9.4 Meters 10.2 Meters 10.7 Meters
100 Cm Height
Watering Radius Ø
11.1 Meters 11.9 Meters 12.0 Meters
Ø3,2 mm Purple
Flow (L/hr) 379 443 495
50 Cm Height
Watering Radius Ø
10.8 Meters 11.7 Meters 11.9 Meters
100 Cm Height
Watering Radius Ø
12.7 Meters 13.1 Meters 13.3 Meters

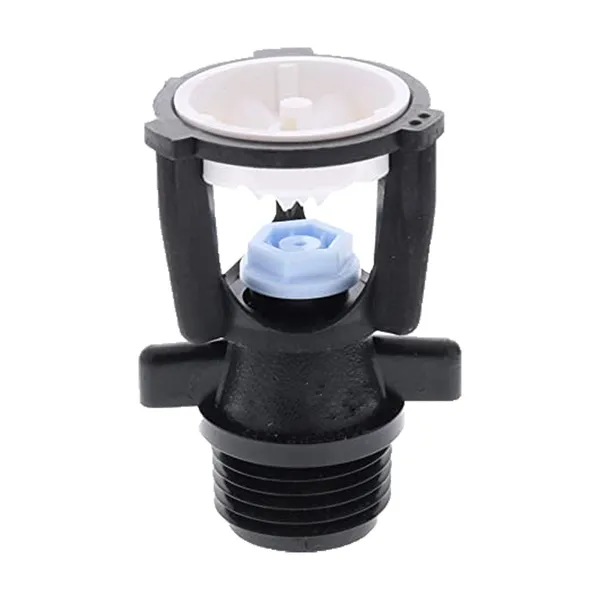

DP1005-DK

Rotation Atomizer Sprinkler (Upright)

Key Features:

  • Stable water supply at low pressures
  • Level water distribution with 10 degree angle
  • 1/2" male connection.
  • Low evaporation loss
  • Flow options with colored nozzle for different usage.
  • 95-490 Lt/h water consumption per hour
  • Operating pressure range from 1 to 1.75 bar
  • Lower sensitivity to clogging and higher resistance to wind.
  • Promotes germination thanks to small water particles.
  • Quality plastic material provides resistance to abrasion, chemicals, UV radiation and impact.
  • The rotation of the grooved deflector in combination with the yawing motion ensures the most uniform water application.
  • It distributes droplets over a wide coverage area at low pressures with lower application density.

Application:

  • Thin-leaved plants.
  • Seed applications.
  • Suitable for frost protection
  • In order to prevent the formation of a layer above the soil.
  • Appropriate watering for germination.
