DP1005
Rotation Sprinkler
Bar
1,4 bar 1,75 bar
1,6 mm Blue
Flow (L/hr) 114 127
90 Cm Height
Watering Radius Ø
8.0 Meters 8.8 Meters
180 Cm Height
Watering Radius Ø
9.4 Meters 10.1 Meters
Ø2.4 mm Golden
Flow (L/hr) 250 284
90 Cm Height
Watering Radius Ø
9.5 Meters 9.6 Meters
180 Cm Height
Watering Radius Ø
10.4 Meters 10.5 Meters
Ø3,2 mm Purple
Flow (L/hr) 443 495
90 Cm Height
Watering Radius Ø
9.6 Meters 9.8 Meters
180 Cm Height
Watering Radius Ø
10.8 Meters 11.0 Meters
DP1005-TN

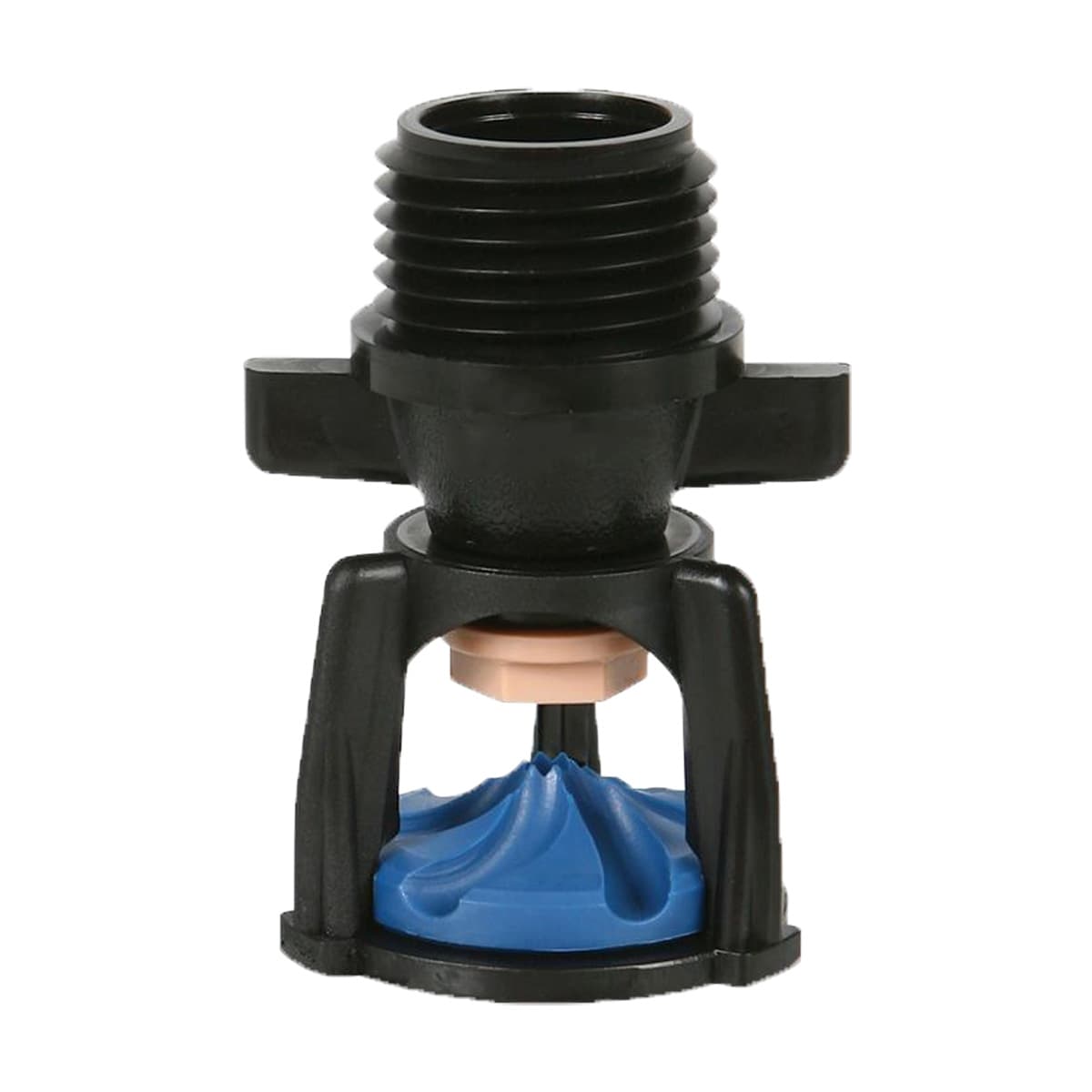

Rotation Atomizer Sprinkler (Ceiling)

Key Features:

  • Stable water supply at low pressures
  • Leveled water distribution. Larger diameter irrigation with high degree angle.
  • 1/2" male connection.
  • Low evaporation loss
  • Flow options with colored nozzle for different usage.
  • 95-490 Lt/h water consumption per hour
  • Operating pressure range from 1 to 1.75 bar
  • Lower sensitivity to clogging and higher resistance to wind.
  • Promotes germination thanks to small water particles.
  • Quality plastic material provides resistance to abrasion, chemicals, UV radiation and impact.
  • The rotation of the grooved deflector in combination with the yawing motion ensures the most uniform water application.
  • It distributes droplets over a wide coverage area at low pressures with lower application density.

Application:

  • Thin-leaved plants.
  • Seed applications.
  • Suitable for frost protection
  • In order to prevent the formation of a layer above the soil.
  • Appropriate watering for germination.
